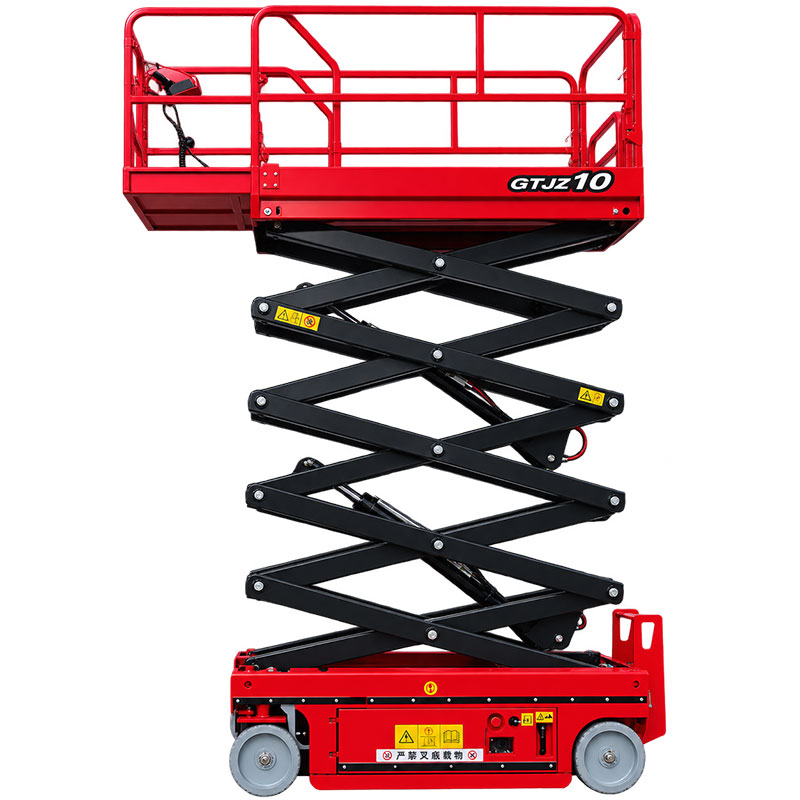

10m Scissor Lift provides access to higher building services while remaining suitable for many indoor industrial and commercial environments. This height is often considered when maintenance teams begin working in high-bay warehouses, factories, logistics centers and large public buildings.
At this height, equipment selection should focus increasingly on stability, platform load, operator control and serviceability.
| Model | GTJZ10 |
| Max. Working Height | 11.8 m |
| Max. Platform Height | 9.8 m |
| Safe Working Load | 320 kg |
| Extension Platform Capacity | 113 kg |
| Platform Size | 2.29 × 1.13 × 1.10 m |
| Platform Extension | 0.90 m |
| Overall Dimensions (L × W × H) | 2.48 × 1.19 × 2.45 m |
| Height with Guardrails Folded | 1.92 m |
| Wheelbase | 1.89 m |
| Drive Speed (Stowed) | 3.5 km/h |
| Gradeability | 25% |
| Lifting Motor | 24 V / 3.3 kW |
| Battery | 4 × 6 V / 200 Ah |
| Machine Weight | 2,540 kg |
Leave more about your requirements, like models, quantities, countries, etc.
Modern distribution centers frequently use high ceilings to maximize vertical storage capacity. Lighting, sprinkler systems, sensors and electrical services may therefore be positioned well above standard maintenance reach. A 10m scissor lift allows maintenance teams to reach these systems without installing permanent access structures. Because warehouses remain operational during maintenance, the machine should also be able to move efficiently around storage and logistics activities.
Industrial plants often contain complex overhead infrastructure. A maintenance team may need access to pipe supports, cable routes, ventilation systems, lighting, monitoring devices and structural components.
At approximately this height category, workers may remain elevated longer while performing diagnostic or repair work.
Sports facilities, exhibition halls, airports and large retail buildings often have service equipment positioned at substantial height. A 10m electric scissor lift can provide access for maintenance while avoiding engine exhaust inside enclosed buildings.
For public facilities, additional priorities may include low noise, non-marking tires, smooth controls and protection of finished surfaces.
Leave more about your requirements, like models, quantities, countries, etc.
It can be suitable when the required work points fall within the machine’s rated reach and the floor and aisle layout support safe equipment access.
Many machines offer folding guardrail systems, but the design varies. Buyers should request both operating and transport dimensions.
Commonly requested parts may include switches, sensors, seals, contactors and selected electrical components, depending on the machine design.
Inspection frequency should follow the manufacturer’s maintenance schedule and the battery supplier’s requirements. High-utilization machines may require more frequent attention.
It may, provided sufficient clearance, traffic control and site safety procedures are maintained. Machine dimensions should be checked against automated systems and barriers.
A machine capable of reaching higher areas is usually larger and heavier than a low-level unit. This means the route from the unloading area to the work location should be checked in advance.
Consider door openings, ramps, floor changes, elevator limits, turning areas and restricted passages.
Access planning can prevent receiving equipment that reaches the correct height but cannot physically enter the work zone.
