| Specification | Unit | C41-40kg |
| Max. hit energy | kj | 0.53 |
| Height of working area | mm | 245 |
| Hit number | Min-1 | 245 |
| Dimension of top and bottom die surface(L×W) | mm | 120×50 |
| Max. square steel can be forged | mm | 52×52 |
| Max. round steel can be forged(Diameter) | mm | ￠68 |
| Motor power | kw | 4 |
| Speeds of motor | r.p.m | 1440 |
| Anvil weight | kg | 400 |
| Total weight | kg | 1350 |
| Overall dimensions(L*W*H) | mm | 1080*600*1430 |
Leave more about your requirements, like models, quantities, countries, etc.

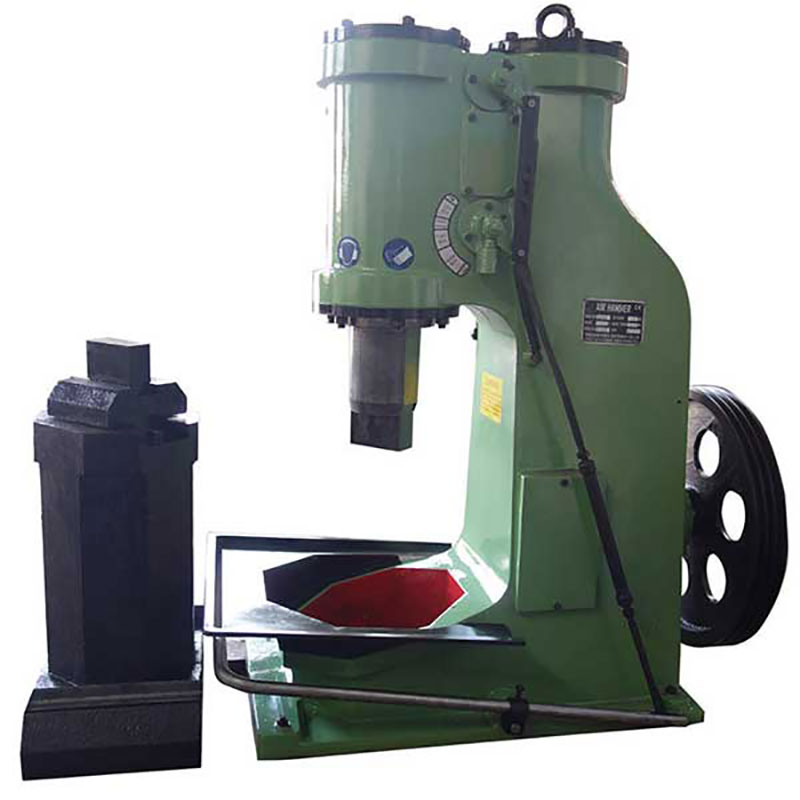

C41-40kg blacksmith power hammer is a classic medium-small industrial forging machine, specially designed for small and medium-sized forging factories with stable batch production needs. It upgrades the striking power, working stroke, and load capacity based on 25kg models, solving the problem of insufficient processing capacity of small hammers for medium-sized workpieces. This equipment is widely recognized in the global forging industry for its strong power, stable operation, and high production efficiency, becoming the mainstream supporting equipment for standardized small-batch forging production.
Equipped with an enhanced pneumatic power system, the 40kg power hammer outputs stronger single striking kinetic energy, which can quickly complete the deformation and shaping of medium-thick metal blanks. It supports long-term high-intensity continuous operation, with a daily production capacity far exceeding small hammers. The dual-control operation mode of manual and automatic striking improves production flexibility, suitable for both customized single-piece production and standardized batch processing.
This machine is mainly used for commercial batch production of medium-small forged parts.
It is widely applied in the production of standard hand tools, mechanical fasteners, auto parts blanks, and medium-sized agricultural tools.
It can complete mass processing of hardware accessories, construction metal parts, and daily-use forged products.
It is also suitable for customized medium-sized metal parts processing and pre-forging shaping of precision die forgings.
Leave more about your requirements, like models, quantities, countries, etc.
The 40kg model has stronger striking power, larger processing size range, higher batch production efficiency, and more stable high-intensity operation. It can process thicker metal blanks that 25kg hammers cannot handle, fully meeting commercial batch production standards of small and medium factories.
Absolutely suitable. It adopts industrial-grade reinforced structure and optimized power system, supporting 10-12 hours of continuous daily operation with stable performance, low failure rate, and fully meeting the long-term batch production needs of formal forging workshops.
It needs a simple reinforced concrete foundation with conventional shock absorption treatment to reduce working vibration. The foundation construction is simple and low-cost, far less complex than large forging equipment, suitable for rapid workshop layout.
It can stably forge hot carbon steel blanks with a diameter of 45-50mm, covering most medium-small industrial forged parts and solving the thickness limitation of small-sized power hammers.
A 1.2-1.5m³/min air compressor with stable 8bar pressure is required to support long-term high-intensity automatic striking and ensure consistent forging force for batch products.
Yes, it can process medium-thick stainless steel and low-alloy steel blanks after sufficient heating. It is widely used for alloy part pre-forging in small and medium industrial production lines.
The adjustable striking frequency is 160-220 times per minute, which balances high-efficiency batch production and precise shaping of medium-sized workpieces, with strong process flexibility.
Regularly replace lubricating oil, check air circuit sealing, fasten structural bolts, and avoid overloading thick blanks. Standard maintenance can extend the service life to more than 12 years.
